 New or Rebuilt Rotors and Controls for Sale

Rotors are listed by wind load capacity1 - descending



(CliCk on the thumbnail photo for a LARGER PICTURE

All Rotors are subject to prior sale * Older or less popular models may not be available at all times * email for stock status

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*

Click below to ...

Manufacturer

Custom rotor Control Cables Cut to length with your Choice of Connector pre-installed. Call to discuss your particular needs; available for any model rotor and control unit combination that we sell or service - RC - - Check status NRS

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


  HDR-300A Rotor & Control - 1 year warranty, rated at 25 sq. ft. wind load, solenoid operated locking brake, digital Control 25 HDR300A email $1999 C Telex, Hygain
Click to enlarge HDR-300A Rotor Only - with stainless steel output shaft - 740200-1 $email - C Telex, Hygain
Click to enlarge HDR-300A Control Only - switch selection of North or South centered operation  - 871869 - - C Telex, Hygain
    HDR-300 Rotor & Control - 1 year warranty, rated at 25 sq. ft. wind load, solenoid operated locking brake, digital Control 25 HDR300 - - C Telex, Hygain
Click to enlarge HDR-300 Rotor Only - with steel output shaft - 871159 $699.00 - C Telex, Hygain
Click to enlarge HDR-300 Control Only - 871869 email - C Telex, Hygain

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*

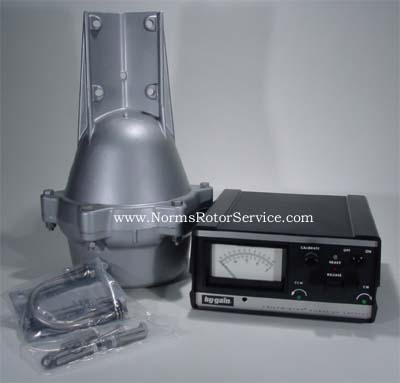

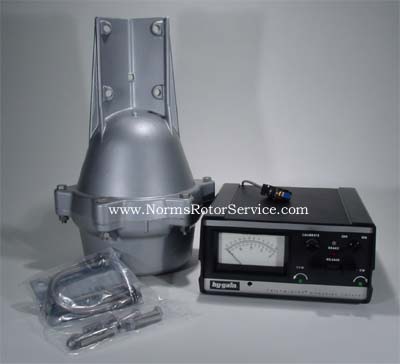

T2X Rotor and Control - 1 year warranty, rated at 20 sq. ft. wind load, solenoid operated locking brake, analog metered Control 20 T2X $1079 $1224 C CDE, Telex, Hygain
Click to enlarge T2X Rotor Only - 51377 $779 $889 C CDE, Telex, Hygain

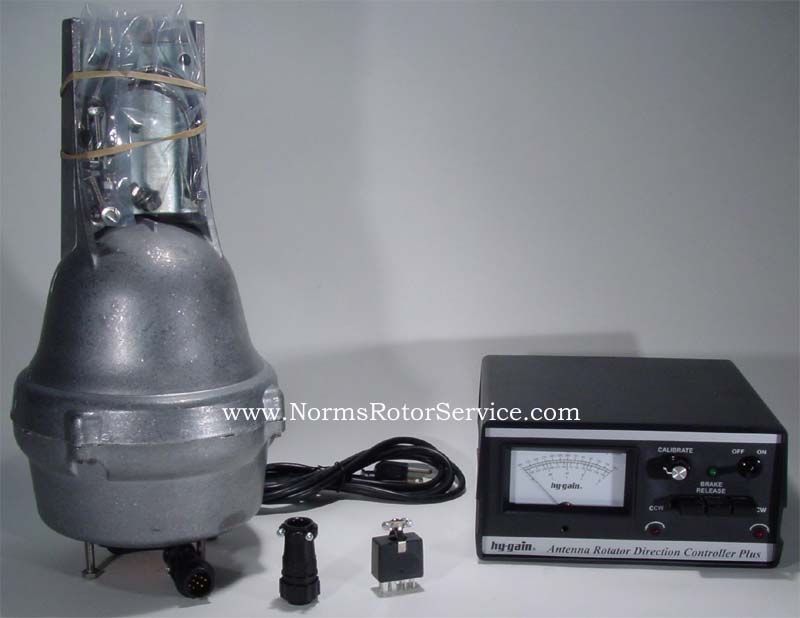

Click to enlarge New Hy-Gain Antenna Rotator Direction Controller plus  (C/u only) - RDC+ - $479 C Hygain
Click to enlarge Rebuilt older T2X control with 8 screw terminal strip but with new style front panel and meter; with BD-189 brake delay installed. - R-RDC $299 - C CDE, Telex, Hygain

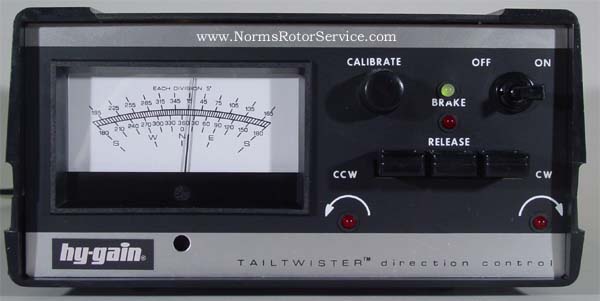

Click to enlarge Rebuilt standard T2X Control only  (analog meter) with BD-189 brake delay installed - 51403BD $249 - C CDE, Telex, Hygain
Click on image to enlarge T2X Control Only with DIGITAL readout (limited availability... Call or email before ordering) - 51403PS $299 - C CDE, Telex, Hygain, Prosearch
Click to enlarge DCU-1 Digital Control only - 870804 $649 $849 C Telex, Hygain

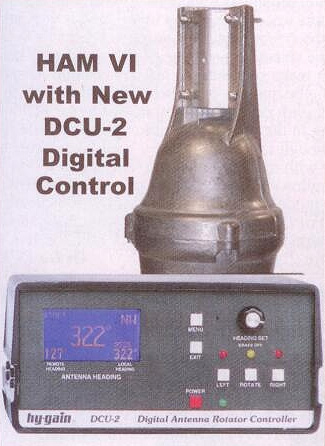

 DCU-2 Digital Control only - DCU-2 - $579 C Hygain
 DCU-3 Digital Control only - DCU-3 - $715 C Hygain

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


Ham 4  New or Rebuilt -1 year warranty, rated at 15 sq. ft. wind load, solenoid operated locking brake, analog metered Control 15 Ham4 $779 $889 C CDE, Telex, Hygain
Click to enlarge Ham 4 Rotor Only - 51372 $679 $799 C CDE, Telex, Hygain
Any of the controls listed for T2X above can be used with the Ham4 - - - - C Hygain

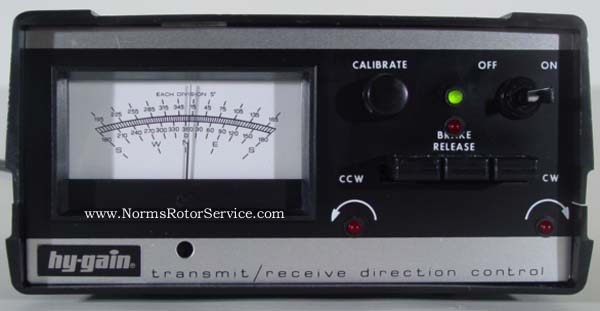

Click to enlarge Rebuilt standard Ham 4 Control Only (analog meter) with BD-189 brake delay installed - 51565BD $225 - C CDE, Telex, Hygain
Click on image to enlarge Ham 4 Control Unit only with DIGITAL readout (limited availability...Call or email before ordering) - 51565PS $299 - C CDE, Telex, Hygain, Prosearch

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


Ham 4 Euro - Ham 4 rotor and Ham 4 Control wired for 220 v Eurapean operation  15 Ham4X email - C CDE, Telex, Hygain

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


Ham SP - Ham 4 Rotor and Ham SP Braille Control Unit   - HamSP $799 - C CDE
Click to enlarge Ham SP Control only - marked visually and in Braille - 51747 $399 - C CDE

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


Ham 3 Rebuilt - 1 year warranty, rated at 12.5 sq. ft. wind load, solenoid operated locking brake,  analog metered control 12.5 Ham3 $699 - C CDE
Rotor Only - 51451 $649 - C CDE

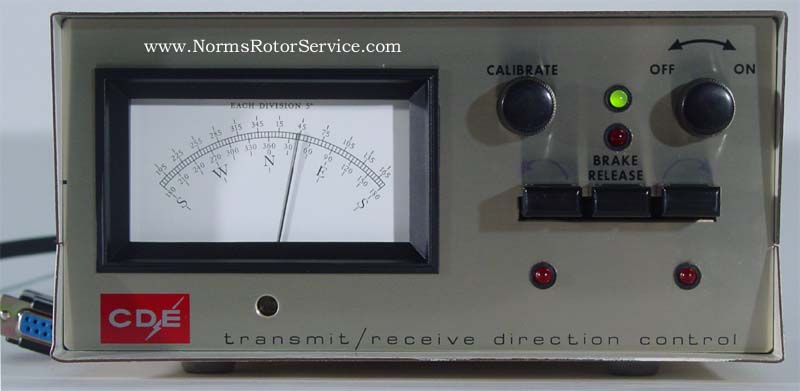

Click to enlarge Ham 3 Control Only with BD-189 brake delay installed - 51435 $199 - C CDE

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


Click to enlarge Heavy Duty Lower Mast Support for H3, H4, and T2X - complete with Stainless steel hardware. Accepts 1-7/8" to 2-5/8" O.D. Mast and centers on 2-1/2" Click to see the LMA in use 51467 $149 $179 C  Telex, Hygain

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


  Ham 2 Rotor and Control - 1 year warranty, rated at 10 sq. ft. wind load, solenoid operated locking brake,  analog metered control (Note 1) 10 Ham2 $679 n/a C CDE
Ham 2 Rotor Only - 50232 $599 n/a C CDE
Click to enlarge Ham 2 Control Only with BD-189 brake delay installed - 50940BD $199 n/a C CDE

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


BD-189 Brake delay KIT ... may be ordered with any of the control units above...or upgrade  your control unit... Click for more info.  - BD189  Click for more info.  Buy now NRS

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


Ham M Rebuilt - 1 year warranty, rated at 10 sq. ft. wind load, solenoid operated locking brake,  analog metered control (Note 1) 10 HamM email n/a C CDE
Ham M Rotor Only - 50232 email n/a C CDE
Click to enlarge Ham M Control Only - 50192 email n/a C CDE

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


  HD-73  Rotor & Control - 1 year warranty, rated at 10 sq. ft. wind load, mechanical disc brake, metered control.  Supplied with one set of mast clamps only.  For a second set of mast clamps to mount on a mast see below. 10 HD73 $679 - C Alliance
Click to enlarge HD-73 Rotor Only - 19400R $549 n/a C Alliance
Click to enlarge HD-73 Control Only - 19531R $199 n/a C Alliance

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


  HD-73-1 Rotor & Control - 1 year warranty, rated at 10 sq. ft. wind load, mechanical disc brake, metered control.  Supplied with one set of mast clamps  for tower mounting.  For a second set of mast clamps for mast mounting - see below. 10 HD731 $679 $799 C Alliance
Click to enlarge HD-73-1 Rotor Only - 19400R $549 n/a C Alliance
Click to enlarge HD-73-1 Control Only - 22500R $209 n/a C Alliance

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


Click to enlarge Lower Mast Clamps for Alliance HD73 or HD73-1 rotor Complete with ALL STAINLESS STEEL mounting hardware. Used to mount an HD73/Hd73-1rotor to a mast. NOT required for tower mounting. Click to see the LMA in use 20089R $99.00 $124 C Alliance

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


CD 45-II Rotor & Control - 1 year warranty, rated at 8.5 sq. ft. wind load, mechanical disc brake, metered control  8.5 CD45II $550 $669 C CDE, Telex, Hygain
Click to enlarge CD 45 Rotor Only - 51571 $399 $515 C CDE, Telex, Hygain
Click to enlarge CD 45 Control Only - 51565 $225 $399 C CDE, Telex, Hygain

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*

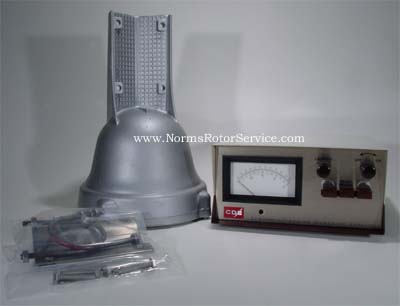

  CD-44 Rotor and Control - 1 year warranty, rated at 7.5 sq. ft. wind load, mechanical disc brake, metered control  7.5 CD44 $525 n/a C CDE
Click to enlarge CD 44 Rotor Only - 50241 $389 n/a C CDE
click to enlarge CD 44 Control Only - 50940 $199 n/a C CDE

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


TSP-1 - Tower mounting plate lift rotor 1/2" above tower plate to allow control cable and terminal strip clearance. TSP-1 - $89 C Hygain

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


TR-44  Rotor & Control - Rebuilt -1 year warranty, rated at 7.5 sq. ft. wind load, mechanical disc brake, metered control  7.5 TR44 email n/a C CDE
Click to enlarge TR44 Rotor Only - 50241 email n/a C CDE
Click to enlarge TR44 Control Only - 50192 email n/a C CDE

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


BT-1 Rotor and Control - 1 year warranty, rated at 5 sq. ft wind load, mechanical disc brake.  5
BT1
email n/a C CDE
BT-1 Rotor only - 51308 - n/a C CDE
Click to enlarge BT-1 Control only - Manual or automatic operation.  Manual operation by turning compass dial to desired setting.  Automatic operation by way of 4 presets accessible from the front panel - 51297 - n/a C CDE

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


  U-110 Rotor & Control - 1 year warranty, rated at 5 sq. ft. wind load, rotor for azimuth & elevation use, light duty. Last of the American made all metal gear train construction rotors, NO plastic gears 5 U110 - -

limited availability

EMAIL

C Alliance
Click to enlarge U110 Rotor Only, last of the American made all metal gear train construction rotors, NO plastic gears - 8910R - - C Alliance
Click to enlarge U110 Control Only - 21448R - - C Alliance
TBB-1 Thrust bearing for U100/U110 - TBB-1 - - C Alliance

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


U-100 Rotor & Control - 1 year warranty, rated at 5 sq. ft. wind load, rotor for azimuth & elevation use, light duty.  Last of the American made all metal gear train construction rotors, NO plastic gears 5 U100 - we have parts to rebuild yours C Alliance
Click to enlarge U100 Rotor Only, last of the American made all metal gear train construction rotors, NO plastic gears - 8910R - - C Alliance
Click to enlarge U100 Control Only - 18649R - n/a C Alliance

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


click to enlarge AR-40 Rotor & Control - 1 year warranty, rated at 3 sq ft. wind load, mechanical disc brake, light duty 3 AR40S2

limited availability

EMAIL

$559 C CDE, Telex, Hygain
- Rebuilt rotor and old style rebuilt Control - AR40S1 - - C CDE, Telex, Hygain
Rotor Only - 50854 - $334 C CDE, Telex, Hygain
Click to enlarge Rebuilt  old style Control only - 50796 -    - C CDE, Telex, Hygain

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


AR-33 Rotor & Control - Designed to rotate and support the largest FM,  TV and compact VHF and UHF communication antenna arrays.  (Ideal for HDTV antennas)  3 AR33 email n/a C CDE, Telex, Hygain
AR33 Rotor Only 50638 - n/a C CDE, Telex, Hygain
Click to enlarge AR33 Control Only - Control offers choice of manual operation, just turn the compass dial to the heading desired and the rotor moves to that position. Also automatic control via 5 pushbuttons that can be pre-set to the 5 most frequently viewed channels.  - 50535 - n/a C CDE, Telex, Hygain

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


AR-22 Rotor and Control - Designed to rotate large television antennas. Will support stacked arrays and deep fringe area antennas. 3 AR22R email n/a C CDE, Telex, Hygain
AR22 Rotor Only - 50429 email n/a C CDE, Telex, Hygain
AR22 Control Only - 50065 - n/a C CDE, Telex, Hygain

Model

Description

Wind load sq ft.

SKU #

Rebuilt + shipping*

New + shipping*


Click to enlarge Light Duty Lower Mast Support for AR, BT, CD and TR series rotors.  Complete with aluminum antenna clamp plate and stainless steel mounting hardware

1.37" (35mm) to 2.062 (52mm) 1.9 OD steel mast recommended.

Click to see the LMA in use 51472P $99 $124 C CDE, Telex, Hygain
- Same as above - correct for Ham-M and Ham-2 or upgrade for the AR/CD series rotors. NOTE: furnished complete with ALL  STAINLESS STEEL mounting hardware including mast clamp plate - 51472S $124 $149 C CDE, Telex, Hygain
TSP-1 - Tower mounting plate lift rotor 1/2" above tower plate to allow control cable and terminal strip clearance. TSP-1 - $89 C Hygain
2" OD x 20 ft (approx) Chrome-moly antenna mast

 1/2" wall (not 1/4!!!)  *used



MAST $199 - pick-up only

1 Wind load rating is for a rotor mounted in a tower on a rotor plate, when mast mounting a rotor using the lower mast adapter derate the rotor wind load capacity by 50%.

* Prices do not include shipping.  Shipping is determined by weight, destination, carrier and speed of delivery desired for each order

Click here to see typical shipping times.

All Rotors are subject to prior sale. All prices are subject to change without notice.

Check with us before you order.

While we make every attempt to publish accurate information on this web site, it is possible than the occasional typographical error may creep through. We are not bound to prices published through honest error; we reserve the right to correct an erroneous price at the time of sale.

We accept     , Checks (allow 10 working days for Check to clear our bank) and Money Orders.  No COD orders.
